Ends
Subject to Offers


Buy Now Price
US $180,000
You will confirm this action on the next page. How it works. How Make Offer works.
8 watchers
ITEM DETAILS
Serial #

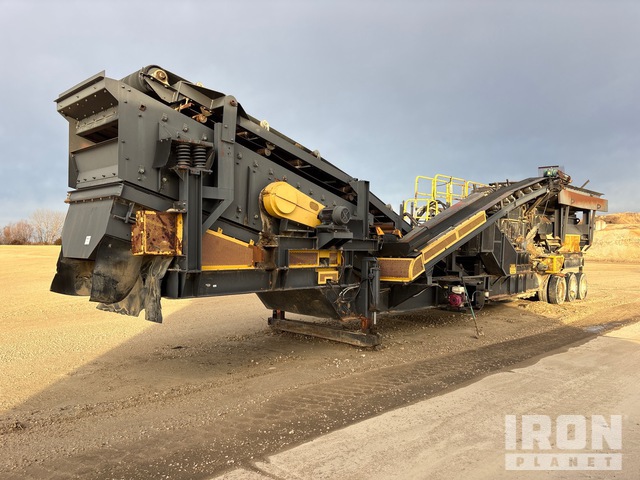

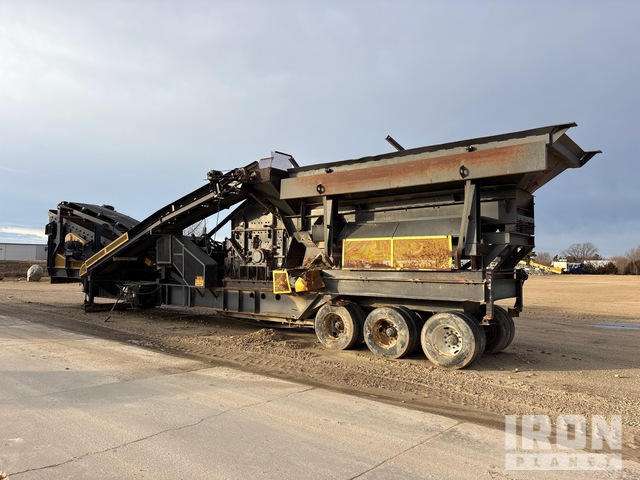

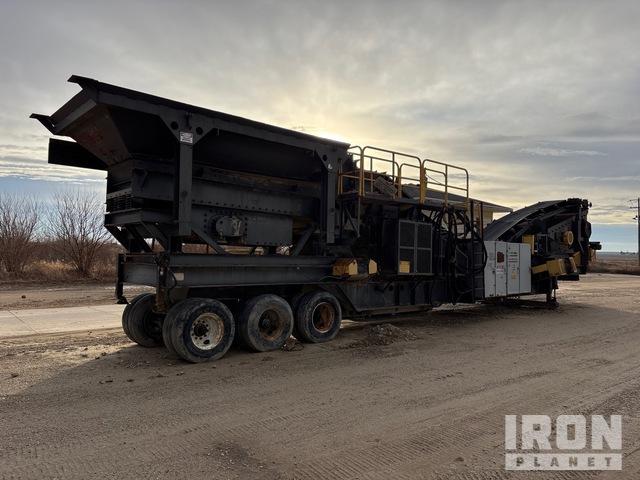

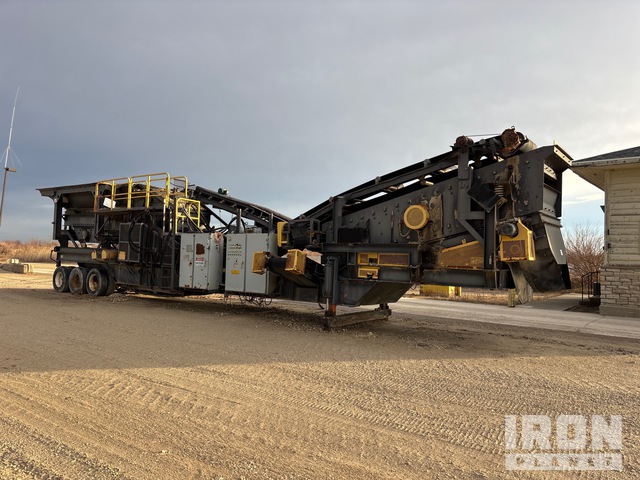

2012 US EPA Label, Honda GX340 1 Cylinder 389 cc Gasoline Engine, 8 ft 9 in x 19 ft Vibratory Pan Feeder Bohringer Impact Crusher, 200 hp Drive Motor, 16 ft x 5 ft Double Deck Screen, 22 in Wide Feed Conveyor, 42 in Wide Under Crusher Conveyor, 42 in x 42 ft Crusher to Screen Conveyor, 48 in Wide Under Screen Conveyor, 24 in Wide Right Discharge Conveyor, 48 in Wide End Discharge Conveyor, 18 in x 7 ft Cross Belt Magnet, Cable Remote Control, Tri/A Carrier, Spring Suspension, Hydraulic Leveling

Inspection Report



Please note that you are bidding on an item offered without IronClad Assurance®. Only basic item condition details are provided for your review and consideration in a purchase decision.

This item is offered as-is, where-is with no IronClad Assurance, and a buyer may not dispute the condition of the item. IronPlanet claims no responsibility for the condition or description of this item. This item does not include any protection offered by IronClad Assurance. A buyer may NOT submit a dispute claim on this item.


General Appearance
Description Rating Details
CE Mark No CE mark found
Hour Meter / Odometer Meter reading could not be obtained - No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.


Control Station
Pin connection pivot point wear inspections are limited to sound, sight and feel observations. Dial indicator testing is not performed.
Description Rating Details
Crusher/Screen Controls Click here to open photos and videos of this item.
(2)


Electrical
The generator was not load checked during the inspection. IronPlanet does not guarantee the generators ability to run at its full rated kW output.
Description Rating Details
Electric Motors Manufacture brand Weg, Horsepower: 200 Click here to open photos and videos of this item.
Switch Gear Number of switches 25, Number of starters 12 Click here to open photos and videos of this item.
Disconnect Switch Not operationally checked Click here to open photos and videos of this item.
Cables and Connections Click here to open photos and videos of this item.
(8)


Engine
Description Rating Details
Emission Certification Label US EPA certification label Click here to open photos and videos of this item.
Exhaust System Click here to open photos and videos of this item.
Oil Leaks No dripping leaks
Fuel Leaks No dripping leaks
Cooling System Leaks No dripping leaks
Engine - Left Side Click here to open photos and videos of this item.
Engine - Right Side Click here to open photos and videos of this item.
Limited Function Check The engine would crank but would not run. Static Check Only
(4)


Hydraulics
See photos for condition
Description Rating Details
Pumps (Hydraulics) Click here to open photos and videos of this item.
Hydraulic Tank Click here to open photos and videos of this item.
Hoses Click here to open photos and videos of this item.
Crusher Door Cylinders Click here to open photos and videos of this item.
Limited Function Check The hydraulic system could not be operationally checked.
(6)


Feeder
Description Rating Details
(21)


Chassis
IronPlanet pin connection pivot point wear inspections are limited to sound, sight and feel observations. Dial indicator testing is not performed.
Description Rating Details
Feed Hopper Length @ top: 19 ft, Width @ top: 8 ft 9 in Click here to open photos and videos of this item.
Crusher Base Frame Click here to open photos and videos of this item.
Crusher Chamber Frame Click here to open photos and videos of this item.
Jaw, Blow Bar and Anvil Wear Surface Click here to open photos and videos of this item.
Crusher Drive System Not functionally checked Click here to open photos and videos of this item.
VSI / HSI Crusher Chamber Click here to open photos and videos of this item.
Feed Conveyor Condition 22 in wide feed belt Belt is worn. Click here to open photos and videos of this item.
Feed Conveyor Frame Click here to open photos and videos of this item.
Feed Conveyor Drive Motor Not operationally checked Click here to open photos and videos of this item.
Feed Conveyor Rollers Click here to open photos and videos of this item.
Feed Conveyor Head and Tail Pulley Click here to open photos and videos of this item.
Discharge Conveyor Condition Click here to open photos and videos of this item.
Discharge Conveyor Drive Motor Not operationally checked Click here to open photos and videos of this item.
Discharge Conveyor Rollers Click here to open photos and videos of this item.
Discharge Conveyor Head and Tail Pulley Click here to open photos and videos of this item.
Screen Deck Incline screen, Number of decks: 2 Click here to open photos and videos of this item.
Deck Frames / Wear Bars Click here to open photos and videos of this item.
(28)


Carrier
Description Rating Details
Axle Condition Click here to open photos and videos of this item.
Trailer Brakes Air, Not operationally checked, Middle left brake chamber is damaged Click here to open photos and videos of this item.
Brake Lines/Hoses Not operationally checked
Limited Function Check The main chassis components could not be operated.
Tire Size All of the tires are the same size, 11R22.5 Front tires, LF Hercules, LR Hercules, RR Hercules, RF Hercules Click here to open photos and videos of this item.
Tyre Condition Click here to open photos and videos of this item.
Tread Depth LMI 17 /32", LMO 17 /32", LRI 17 /32", LRO 17 /32", RRI 18 /32", RRO 17 /32", RMI 18 /32", RMO 17 /32", LFI 12 /32", LFO 17 /32", RFI 9 /32", RFO 17 /32"
Springs/Hangers Condition Click here to open photos and videos of this item.
Tongue/ Hitch Condition No visible damage Click here to open photos and videos of this item.
Power Receptacle Functional Not operationally checked Click here to open photos and videos of this item.
Marker Lights Functional Not operationally checked
Frame Rails/ Main Beams Condition No visible damage Click here to open photos and videos of this item.
Landing Gear / Tongue Jack Click here to open photos and videos of this item.
Stabilizer Jacks Number of jacks 2, Manual, Stabilizers are damaged. Click here to open photos and videos of this item.
(10)

Oil Sample Analysis
Oil sample analysis not available.
NON-DISPUTABLE
